Adaptador simplex VPIN-VPIN para HFBR-4501/4511
4,15€ (IVA no incluido)

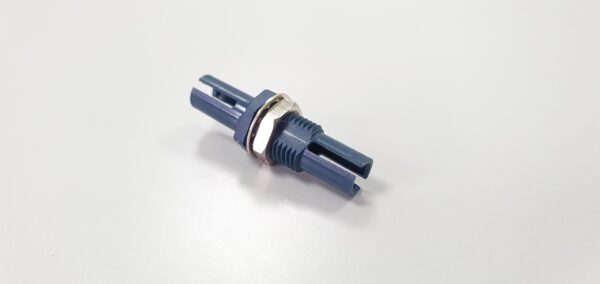

Adaptador VPIN-VPIN símplex para panel, color azul, conecta conectores HFBR-4501/4511, de fibra plástica o los BP4260 (VPIN) de fibra HCS 200/230 um
Información adicional
| COLOR | BEIGE |
|---|
- Descripción
- Información adicional
- Características
- Aplicaciones
Descripción
El adaptador HFBR-4505/4515 empareja dos conectores simplex para paso de panel/mampara de HFBR-4501/4511 terminado cable de fibra plástica. Máximo espesor del panel es de 4,1 mm (0,16 pulgada). Este adaptador puede servir como empalme de cable en línea usando dos conectores símplex. los adaptadores están disponibles en gris (HFBR- 4505) y azul (HFBR-4515). Este adaptador no es compatible. con POF dúplex, POF símplex conectores de enclavamiento o HCS.
Información adicional
| COLOR | BEIGE |
|---|
Plastic Optical Fiber Connector Mechanical/Optical Characteristics
TA = -40 to +85°C, Unless Otherwise Specified.
Parameter Part Number Symbol Min. Typ.[1] Max. Units Temp. °C Note
Retention Force, Simplex, FR-C 7 8 N +25 2
Connector to HFBR-4501/4511 3 -40 to +85
Simplex Latching, 47 80 +25
HFBR-4503/4513 11 -40 to +85
Duplex, 7 12 +25
HFBR-4506 4 -40 to +85
Duplex Latching, 50 80 +25
HFBR-4516 15 -40 to +85
Tensile Force, Simplex, FT 8.5 22 N 3
Connector to Cable HFBR-4501/4511
Simplex Latching, 8.5 22
HFBR-4503/4513
Duplex, HFBR-4506 14 35
Duplex Latching, 14 35
HFBR-4516
Adapter Connector HFBR-4505/4515 with aCC 0.7 1.5 2.8 dB 25 4, 5
to Connector Loss HFBR-4501/4511
Retention Force HFBR-4505/4515 with FR-B 7 8 N
Connector to Adapter HFBR-4501/4511
Insertion Force, Simplex, FI 8 30 N 6
HFBR-4501/4511
Simplex Latching, 16 35
HFBR-4503/4513
Duplex, HFBR-4506 13 46
Duplex Latching 22 51
HFBR-4516
Notes:
1. Typical data are at +25°C.
2. No perceivable reduction in retention force was observed after 2000 insertions. Retention force of non-latching connectors is lower at
elevated temperatures. Latching connectors are recommended for applications where a high retention force at high temperatures is
desired.
3. For applications where frequent temperature cycling over temperature extremes is expected, please contact Agilent Technologies for
alternate connectoring techniques.
4. Minimum and maximum limit for aCC for 0°C to +70°C temperature range. Typical value of aCC is at +25°C.
5. Factory polish or field polish per recommended procedure.
6. Destructive insertion force was typically at 178 N (40 lb.).
HFBR-4505/4515 Adapter
Versatile Link
Transmitters and
Receivers
Connector to
Versatile Link
Transmitters and
Receivers
• Industrial, militar y médico
